How Will BATFE and PSP Measure My Barrel?

Whether or not a gun is subject to National Firearms Act (NFA) regulations has a tremendous impact on the procedures you must follow in order to legally possess the weapon. Firearms not subject to the NFA are governed federally by The Gun Control Act of 1968 (GCA or GCA68) and can be purchased by law abiding gun owners fairly easily in many states, including Pennsylvania. However, getting a weapon which is subject to the NFA is an entirely different animal. This involves a lengthy and somewhat burdensome process, and failure to follow this process properly can lead to stiff legal consequences including possible criminal prosecution. The criminal prosecution can be very serious. In federal court illegal possession of NFA controlled firearms carries a possible period of incarceration up to 10 years as well as the automatic forfeiture of a person’s rights to own, possess or transfer any form of firearms in the future forever. A lesser form of federal prosecution for illegal possession of NFA firearms is in the form of willfully attempting to evade or defeat the NFA tax. It is a felony punishable by up to five years in prison and a $100,000 fine ($500,000 in the case of a corporation or trust), under the general tax evasion statute. For an individual, the felony fine of $100,000 for tax evasion could be increased to $250,000

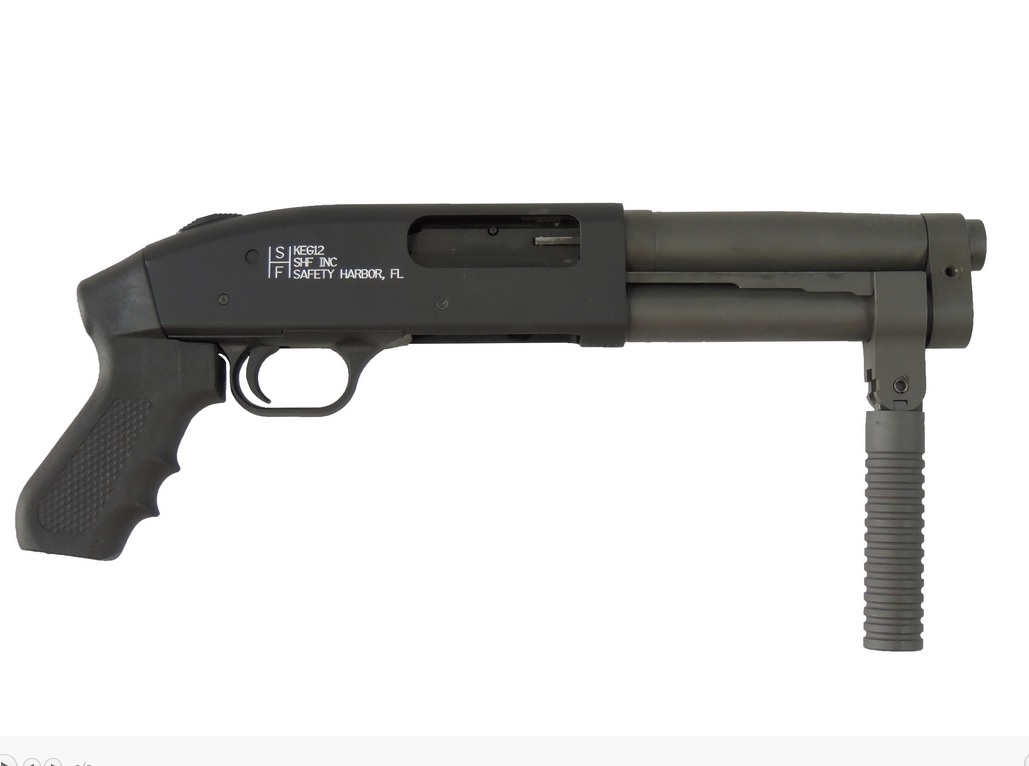

Shotgun Shorty (NFA Regulated) retrieved from twsarms.com on 11/24/14.

As discussed in our recent post SB 15: Stabilizing Brace or Illegal Short Barrel?, short-barreled rifles and short-barreled shotguns are subject to NFA regulations.

• Rifles with an overall length less than 26 inches long, or with barrels less than 16 inches long qualify as short-barreled rifles (SBR).
• Shotguns qualify as short barreled shotguns (SBS) if the weapon has an overall length of less than 26 inches long, or if its barrel is less than 18 inches long.

Rifles: Subject to NFA if barrel < 16” OR overall length < 26”

Shotguns: Subject to NFA if barrel < 18” OR overall length <26”

As being one-tenth of an inch shorter than the above will subject your weapon to NFA regulations and you to a possible criminal prosecution, it’s important to understand how barrel lengths are measured to comply with the law.

Retrieved from ATF.GOV on 11/24/14.

Rifles & Shotguns

The following is a description of the measuring process directly from the NFA Handbook produced by the Bureau of Alcohol, Tobacco, Firearms and Explosives (BATFE).

The BATFE procedure for measuring barrel length is to measure from the closed bolt (or breech-face) to the furthermost end of the barrel or permanently attached muzzle device. Permanent methods of attachment include full-fusion gas or electric steel-seam welding, high-temperature (1100°F) silver soldering, or blind pinning with the pin head welded over. Barrels are measured by inserting a dowel rod into the barrel until the rod stops against the bolt or breech-face. The rod is then marked at the furthermost end of the barrel or permanently attached muzzle device, withdrawn from the barrel, and measured.

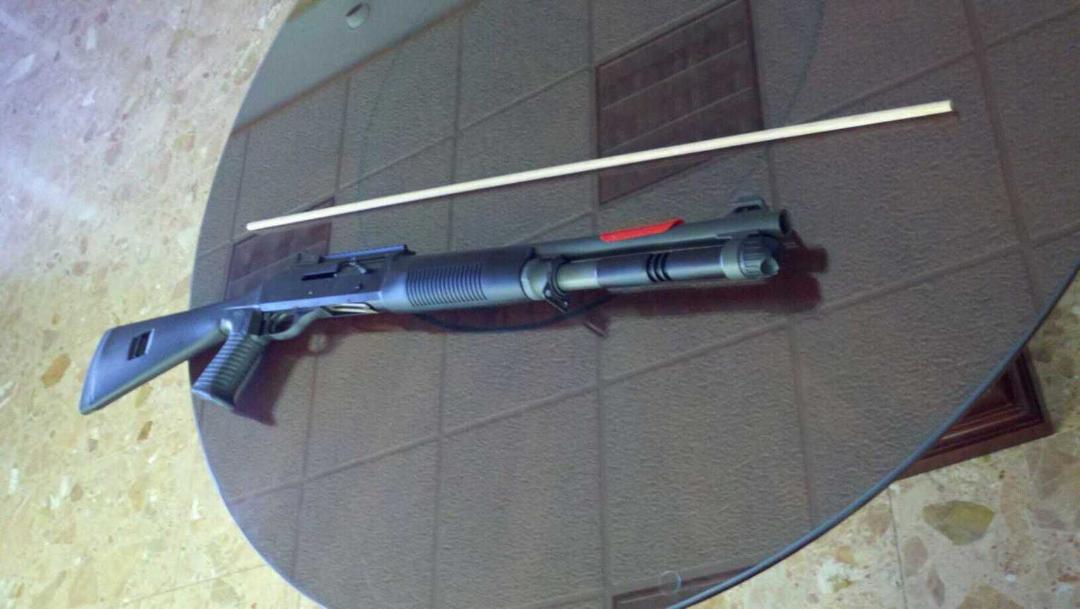

Benelli M4 with 36″ dowel.

Many people simply use a tape measure and check the barrel length from the outside. We highly recommend that you refrain from doing so. This is not the method used by BATFE, and a conflicting measurement can cause you much more trouble than it’s worth. Take the extra time and measure your barrel properly.

Also, remember that BATFE takes its measurements with the bolt closed, so be sure to do the same. Always check your weapon to ensure that it is unloaded.

Here, we use a 36 inch dowel to measure the barrel of our Benelli M4. According to Benelli, the barrel is 18.5 inches, so if we use BATFE’s method properly, we should find that the barrel is exactly 18.5 inches.

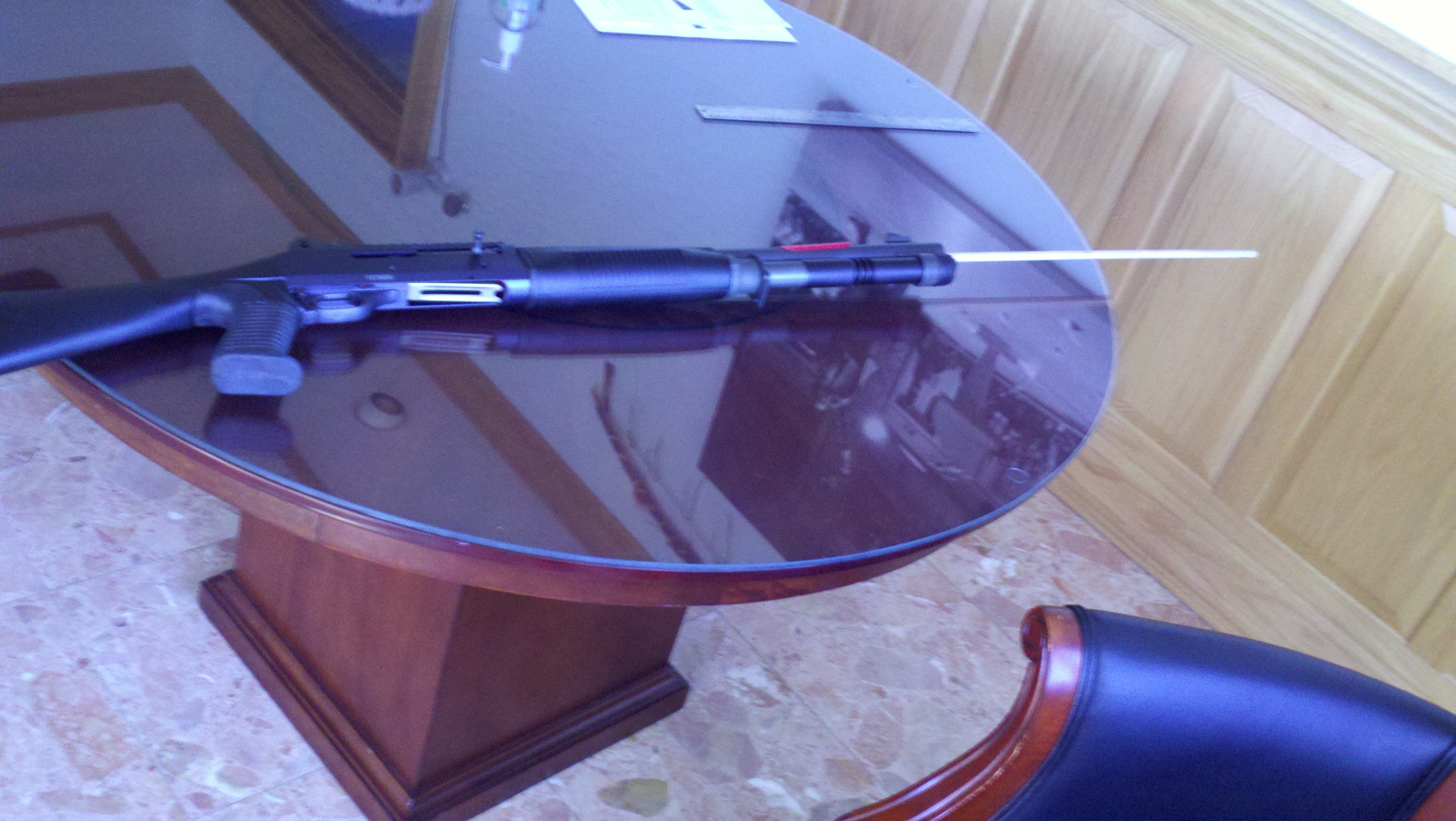

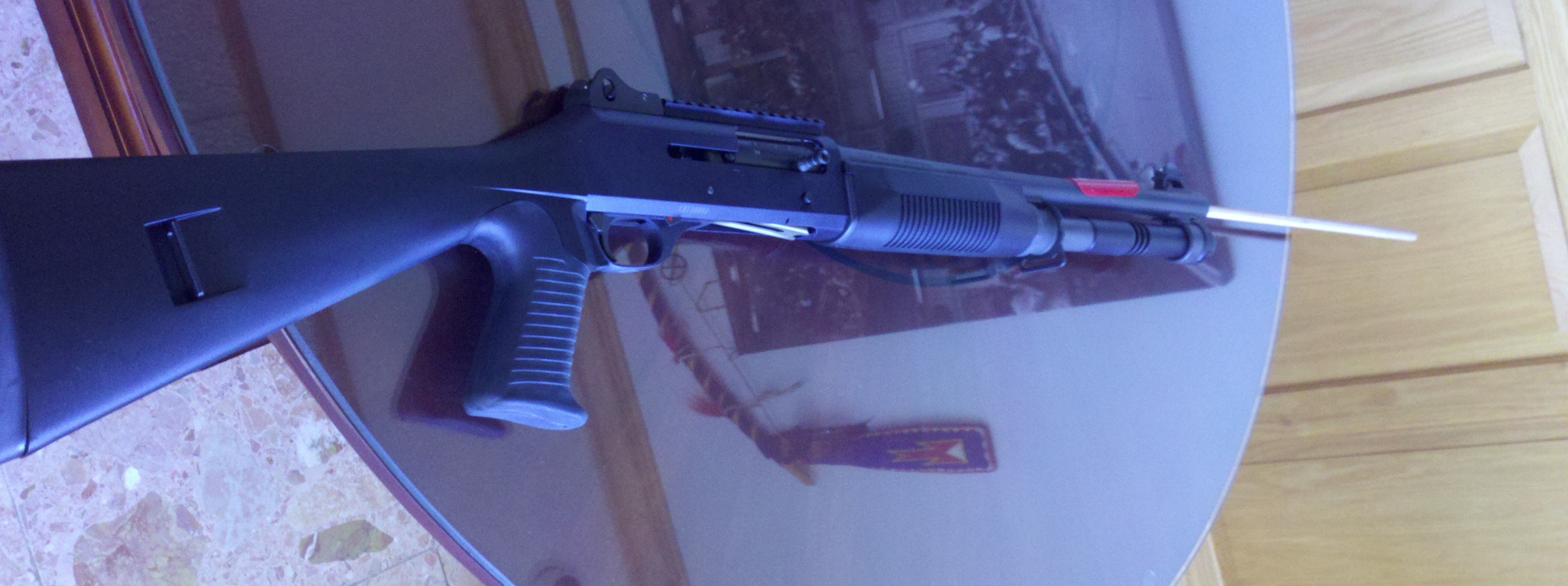

Benelli M4 with dowel inserted.

The bolt is closed, and we insert our dowel into the barrel until the rod stops against the bolt.

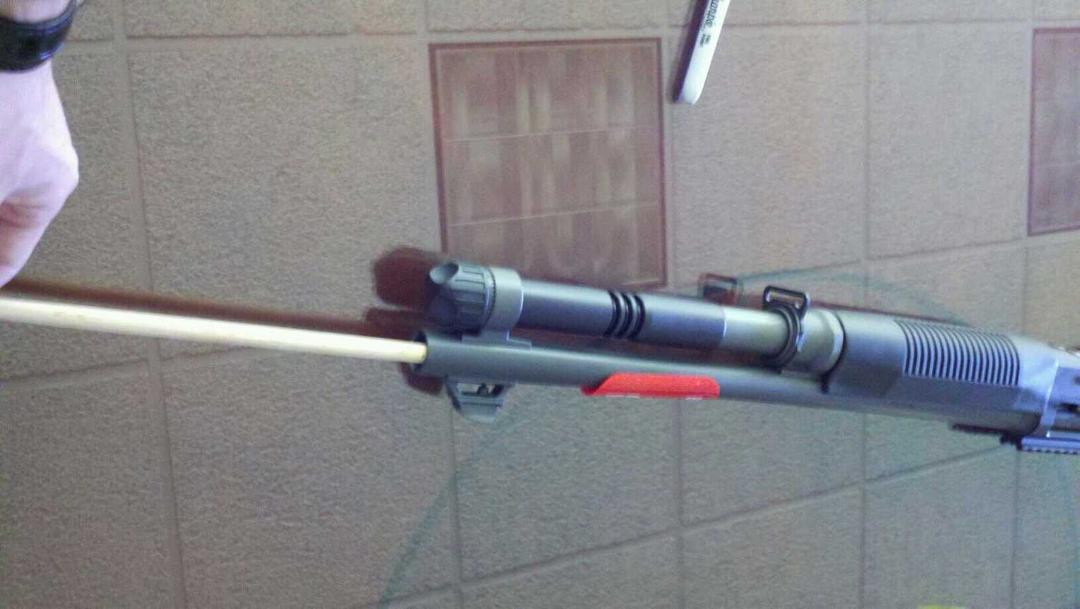

Marking the dowel.

We mark the dowel as it lines up against the tip of the barrel. Because the barrel is unmodified, we do not have to determine which part is a “permanently attached muzzle device.” If you must make this determination, remember that only “full-fusion gas or electric steel-seam welding, high-temperature (1100°F) silver soldering, or blind pinning with the pin head welded over” are methods which qualify as permanent. Parts attached by other methods will not count towards length for the purpose of BATFE measurements.

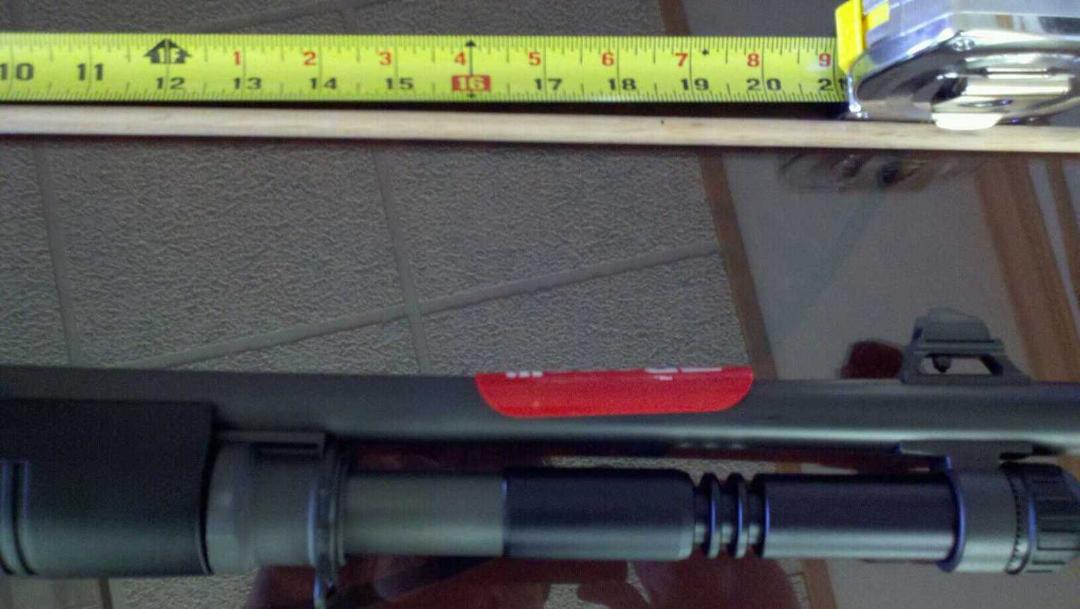

Benelli M4 with marked dowel,

Now that the dowel is marked, we remove it and use a tape measure certified by the National Institute of Standards and Technology (NIST) to measure the dowel from its tip to the marking.

As we can see, the marking is exactly 18.5 inches from the tip. Therefore, by BATFE standards, this Benelli M4 is over 18 inches, and NOT subject to NFA regulations.

There you have it. It’s not tremendously complicated, but it can be tremendously important. Especially if your rifles or shotguns have been, or are soon to be modified, be absolutely certain that you measure properly. If you have firearms that are completely generic, practice on them. Get familiar with the procedure. Doing so will ensure that your mere possession of a firearm with a short barrel does not rob you of your status as a law abiding gun owner.

Some violations of the Pennsylvania Uniform Firearms Act of 1995 depend on the definitional component that is in 18 PS 6102. In it we find the following definition that depends on barrel length:

“Firearm.”  Any pistol or revolver with a barrel length less than 15 inches, any shotgun with a barrel length less than 18 inches or any rifle with a barrel length less than 16 inches, or any pistol, revolver, rifle or shotgun with an overall length of less than 26 inches. The barrel length of a firearm shall be determined by measuring from the muzzle of the barrel to the face of the closed action, bolt or cylinder, whichever is applicable.

The Pennsylvania State Police (PSP) and local departments that prosecute possible violations that depend on this definition of “Firearm” yet the method of doing so is not as well defined as the BATFE method. The PSP follow the BATFE method.

However, there are important notes beyond the 6102 definition of “firearm” that come into play in Pennsylvania.

Barrel length is no longer element of the offense that certain persons could not possess, use, control, sell, transfer, or manufacture a firearm, and, thus, the statutory definition of “firearm” to include shotguns less than certain length did not apply. Commonwealth v. Gillespie, 821 A.2d 1221, 573 Pa. 100, Sup.2003, certiorari denied 124 S.Ct. 442, 540 U.S. 972, 157 L.Ed.2d 320. The statute prohibiting the conduct contained its own definition of “firearm” to include any weapon designed to expel any projectile by the action of an explosive. Id.

Further, the Pennsylvania Superior Court has held that the legislature intended that sawed-off shotguns be prohibited under 18 Pa.C.S.A. § 908, prohibiting offensive weapons, regardless of length of sawed-off barrel. Commonwealth v. Stewart, 495 A.2d 584, 343 Pa.Super. 514, Super.1985, appeal denied.
